product description :

Fireproof and thermal insulation rolling shutter test

Vertical insulation fire shutter

Fireproof and thermal insulation rolling shutter test

The rolling shutter is composed of a single layer of galvanized steel sheets. The front and rear of the sheets are covered with ceramic cotton fabric. The top guide rail is covered from the bottom to the bottom of the building by certified fireproof panels. The rolling shutter box is also covered by certified fireproof panels to form an overall partition. thermal structure. Complies with the thermal insulation requirements of the Hong Kong Buildings Department, "Code of Fire Safety for Buildings 2011 (Revised Edition June 2023)". Passes the British fire test standard BS 476: Part 22: 1987, achieving 78 minutes of thermal insulation and 253 minutes of fire protection The maximum size of the integrity traversing fire damper is: 45 meters wide x 5.5 meters high

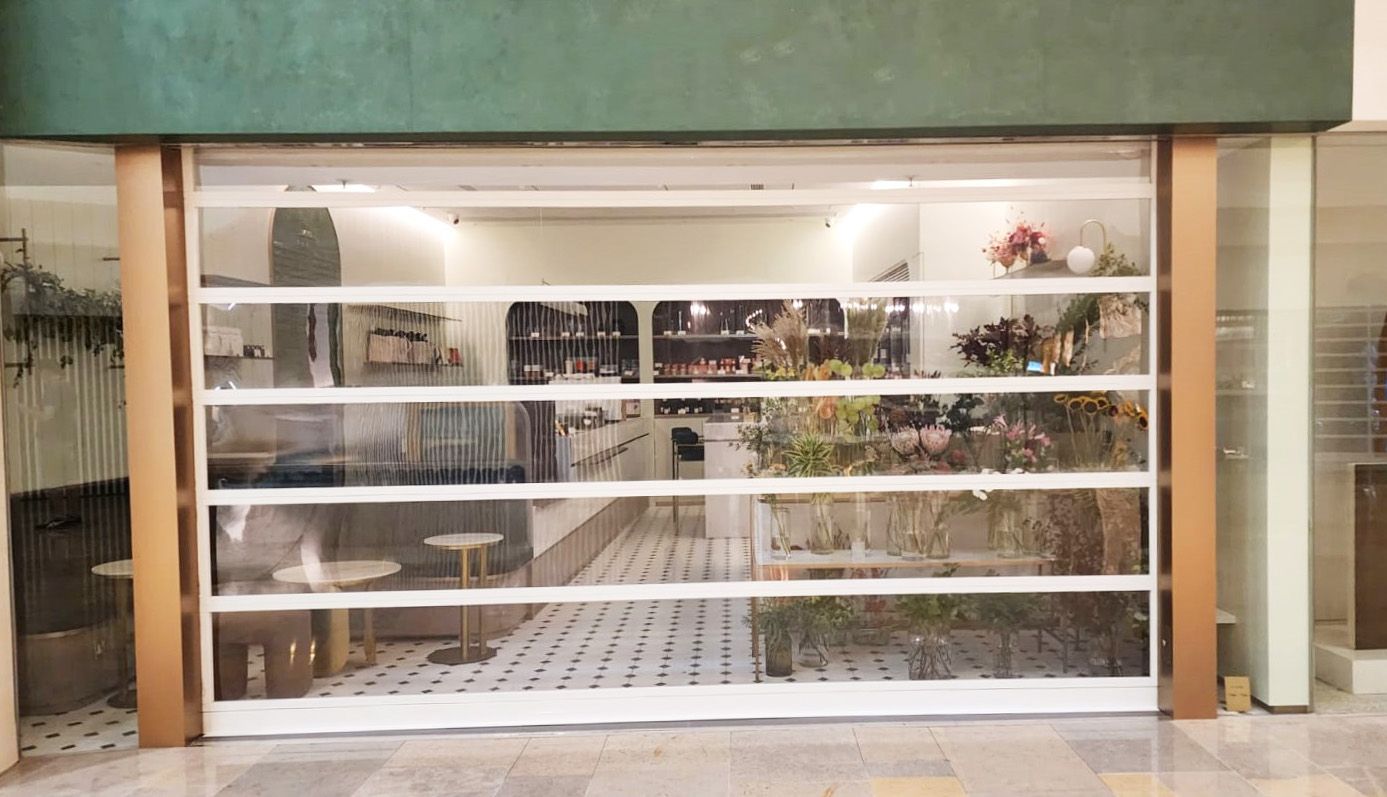

crystal gate

The shutter is made of polycarbonate material, has UV protection function, has passed the BS EN 168:1995 test, and can provide a better thermal insulation effect than glass; it can maintain room temperature and avoid being directly affected by the high temperature of the sun. The standard size of each piece is 300mm (L) x 90mm (H) x 3mm (Thk); it has low smoke and non-toxic effects when burned. The transparency is as high as over 85%, which is bright and transparent, allowing the goods to be displayed at all times, which further enhances the security effect.

Choose from traditional vertical roll, landscape or horizontal operation to suit your environment.

Flat aluminum rolling shutter

The gate leaf is made of 6063-T5 aluminum alloy, the surface is anodized or white powder spray coating RAL9016, the thickness is 1mm ±0.1mm. The flat gate surface provides an excellent location for advertising.

The rolling shutter is composed of a single layer of galvanized steel sheets. The front and rear of the sheets are covered with ceramic cotton fabric. The top guide rail is covered from the bottom to the bottom of the building by certified fireproof panels. The rolling shutter box is also covered by certified fireproof panels to form an overall partition. thermal structure. Complies with the thermal insulation requirements of the Hong Kong Buildings Department, "Code of Fire Safety for Buildings 2011 (Revised Edition June 2023)". Passes the British fire test standard BS 476: Part 22: 1987, achieving 78 minutes of thermal insulation and 253 minutes of fire protection The maximum size of the integrity traversing fire damper is: 45 meters wide x 5.5 meters high

The shutter is made of polycarbonate material, has UV protection function, has passed the BS EN 168:1995 test, and can provide a better thermal insulation effect than glass; it can maintain room temperature and avoid being directly affected by the high temperature of the sun. The standard size of each piece is 300mm (L) x 90mm (H) x 3mm (Thk); it has low smoke and non-toxic effects when burned. The transparency is as high as over 85%, which is bright and transparent, allowing the goods to be displayed at all times, which further enhances the security effect. Choose from traditional vertical roll, landscape or horizontal operation to suit your environment.

Made of polycarbonate injection molding, it is UV-resistant, has passed the BS EN 168:1995 test, and can provide a superior thermal insulation effect than glass; it can maintain room temperature and avoid being directly affected by the high temperature of the sun. Aluminum alloy ribs are extruded from 6063-T5, powder-coated, and standard in white. You can choose traditional vertical roll or horizontal roll to suit your environment.
